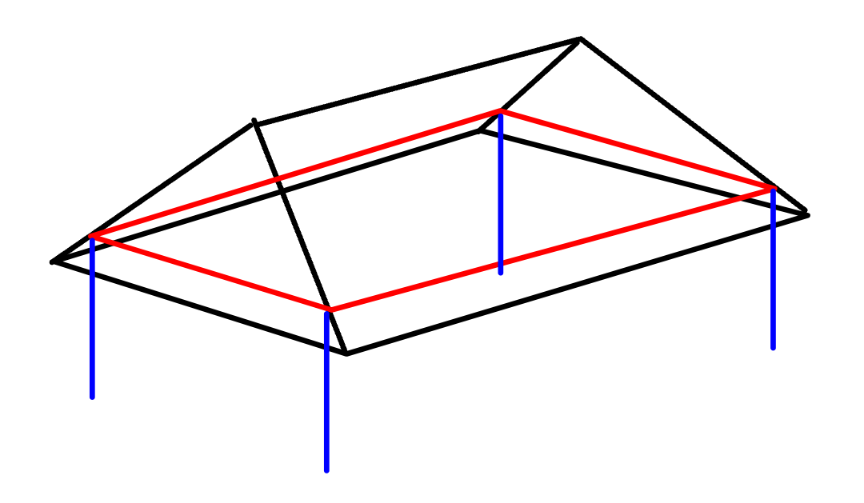

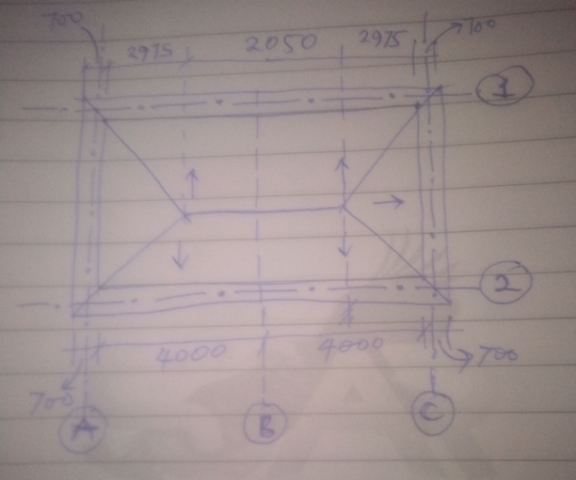

If the roof beam load is given by
10kN/m and the roof unit area load
is 1.2kN/m^2 :
(i) Determine the imposed loads on
beams 1 and 2 (BM−1 and BM−2)
(ii) Load to be carried by column 1 and
2 (CT−1 and CT−2)

necx122


necx122


mr W


mr W


0
Answers
No answers yet. Be the first to answer!
Know the answer? Share your knowledge!
